50/60 Hz Single Phase Transformers

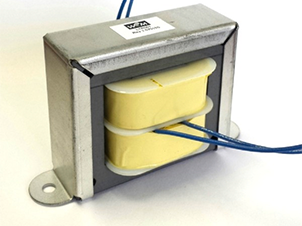

West Coast Magnetic’s 803 series provides cost effective, compact, and efficient single phase power transformers. This series features an RMS power rating up to 1.5 kVA in an easy to mount chassis configuration. Safety agency certification from UL/CSA/VDE is available on request. Quick turns on custom requirements make these ideal for applications when stock catalog transformers are not available. Features Power to 1.5 kVA, 2500 Vac hypot, and a thermal rating of 130 C.

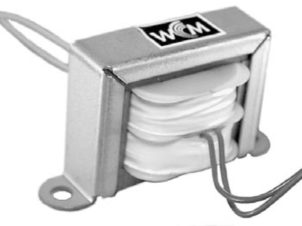

West Coast Magnetics 50/60 Hz transformers are designed for isolated single phase power transfer at peak power levels up to 150 Watts. They feature high efficiency in a compact size. Safety agency certification from UL/CSA/VDE is available on request. Quick turns on custom requirements make these ideal for applications when stock catalog transformers are not available. Features RMS power to 60 watts, over 100 watts peak power. 2500 Vac hypot, thermal rating of 130 C

This small transformer steps down 40 amps of 60 Hz power to 18 volts. Featuring a 2 section bobbin, isolation will pass all UL requirements. We can also build this in a PC mount version and with our ISO certified quality system to back it up, it will never ever disappoint.

This rugged linear design steps up 200 Volts of power at 50 Hz. Using high temp materials, and impregnated in epoxy, it is suitable for the most demanding applications. The connector block on top makes interconnection super easy. This transformer can handle the most demanding service environment.
