West Coast Magnetics 50/60 Hz transformers are designed for isolated single phase power transfer at peak power levels up to 150 Watts. They feature high efficiency in a compact size. Safety agency certification from UL/CSA/VDE is available on request. Quick turns on custom requirements make these ideal for applications when stock catalog transformers are not available. Features RMS power to 60 watts, over 100 watts peak power. 2500 Vac hypot, thermal rating of 130 C
| Part Number | Weight (gm) | VA Rating |
|---|---|---|
| WCM802-01 | 96 | 3.2 |
| WCM802-02 | 125 | 4.3 |
| WCM802-03 | 165 | 6.3 |
| WCM802-04 | 206 | 8.0 |
| WCM802-05 | 272 | 11 |
| WCM802-06 | 326 | 14 |
| WCM802-07 | 468 | 23 |
| WCM802-08 | 624 | 31 |
| WCM802-09 | 741 | 44 |
| WCM802-10 | 925 | 57 |
Note: These transformers are custom. Choose a schematic and specify input and output voltage, VA Rating and operating frequency with your RFQ.

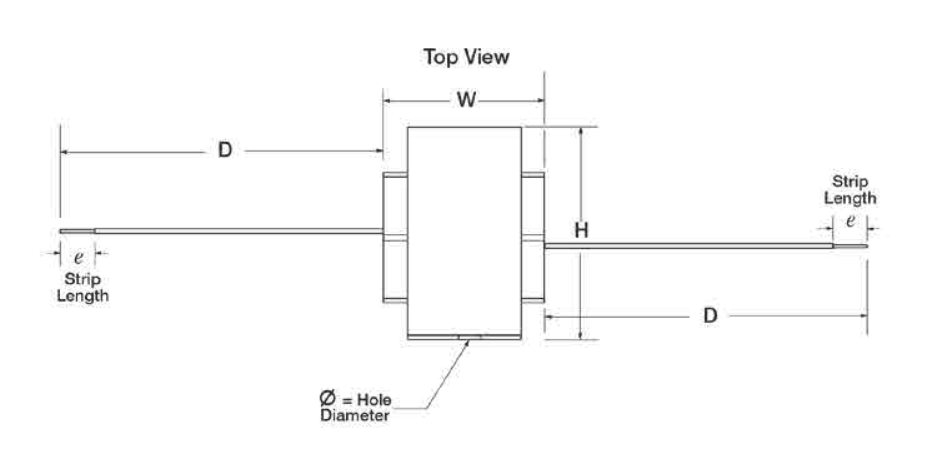

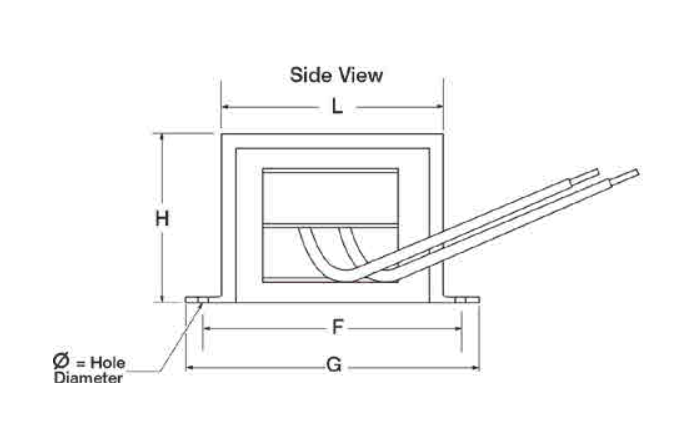

| Part Number | L | W | H | F | G | ø | D | e | Lead Wire |
|---|---|---|---|---|---|---|---|---|---|
| WCM802-01 | 1.46/37.1 | 1.07/27.2 | 1.21/30.7 | 1.75/44.5 | 2.06/52.4 | .187/4.7 | 4″ | 3/8 | 24 AWG |
| WCM802-02 | 1.46/37.1 | 1.20/30.5 | 1.21/30.7 | 1.75/44.5 | 2.06/52.4 | .187/4.7 | 4″ | 3/8 | 24 AWG |
| WCM802-03 | 1.72/43.7 | 1.20/30.5 | 1.39/35.3 | 2.0/50.8 | 2.38/60.5 | .187/4.7 | 5″ | 3/8 | 24 AWG |
| WCM802-04 | 1.72/43.7 | 1.40/37.6 | 1.39/35.3 | 2.0/50.8 | 2.38/60.5 | .187/4.7 | 5″ | 3/8 | 24 AWG |
| WCM802-05 | 1.96/49.8 | 1.31/33.3 | 1.65/41.9 | 2.375/60.3 | 2.81/71.5 | .187/4.7 | 5″ | 3/8 | 24 AWG |
| WCM802-06 | 1.96/49.8 | 1.45/36.8 | 1.65/41.9 | 2.375/60.3 | 2.81/71.5 | .187/4.7 | 5″ | 3/8 | 24 AWG |
| WCM802-07 | 2.33/59.2 | 1.58/40.1 | 1.97/50.0 | 2.81/71.5 | 3.25/82.6 | .187/4.7 | 6″ | 1/2 | 24 AWG |
| WCM802-08 | 2.33/59.2 | 1.86/47.2 | 1.97/50.0 | 2.81/71.5 | 3.25/82.6 | .187/4.7 | 6″ | 1/2 | 24 AWG |
| WCM802-09 | 2.73/69.3 | 1.82/46.2 | 2.38/60.5 | 3.125/79.4 | 3.69/93.7 | .187/4.7 | 6″ | 1/2 | 24 AWG |
| WCM802-10 | 2.73/69.3 | 2.21/36.2 | 2.38/60.5 | 3.125/79.4 | 3.69/93.7 | .187/4.7 | 6″ | 1/2 | 24 AWG |
Dimensions: Inches/mm
Note: Split Primary (Options A & C) functional for 115 VAC/230 VAC modes. Untapped Secondary (Options B & C) for full wave bridge and regulated linear outputs. All materials of construction minimum Class B 130 degrees C rated.
West Coast Magnetics 50/60 Hz transformers are designed for isolated single phase power transfer at peak power levels up to 150 Watts. They feature high efficiency in a compact size. Safety agency certification from UL/CSA/VDE is available on request. Quick turns on custom requirements make these ideal for applications when stock catalog transformers are not available. Features RMS power to 60 watts, over 100 watts peak power. 2500 Vac hypot, thermal rating of 130 C.
