Base Drive Transformers

Base drive transformers are a critical building block for most electronic power supplies. Key
design variables for these important components include small size, excellent primary to
secondary coupling, high input to output isolation and stable performance under environmental
and in circuit conditions creating stress. WCM’s base drive products use modern core, winding
and packaging elements to delivery high performance in a small SMD package.

base gate drive transformers

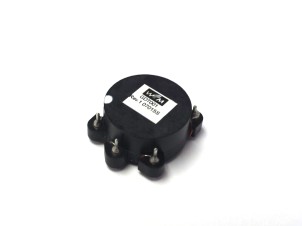

WCM700 Series Base Drive Transformer

Base Drive: Base drive transformers need to have very tightly coupled windings, and high isolation in a small package. With a leakage inductance value less than 0.1% of the 590 primary inductance and 3000 volts of isolation in an SMD package only 8.3 mm high, this design really delivered for our customer.

WCM701 Series Base Drive Transformers

  • Very low profile
  • excellent noise attenuation
  • current to 30 amps
  • safety agency compliance

WCM701 Series Base Gate Drive Transformer

  • Power from 650W tom 2.5 kW
  • Frequency from 10 kHz to 1 MHZ
  • Customer prototypes in 2 weeks
