High Voltage Transformers

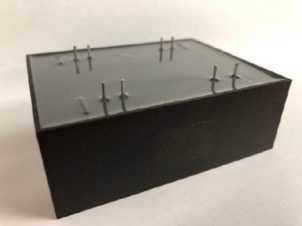

1.0:4.9 Step-Up Transformer

  • Vin = 200V, Vout = 900V
  • Operating frequency of 45kHz to 70kHz
  • Power rating of 2kW
  • Winding to winding isolation up to 21kVDC
  • Vacuum impregnated with silicone potting
  • L x Wx H: 3.10” x 2.42” x 1.30”

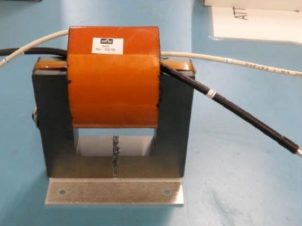

1.00:43.78 Step-Up Transformer

  • Vin = 120V, Vout = 5kV
  • 10kVAC isolation windings to chassis
  • Rated for 5kW at 20kHz
  • L x W x H: 3.0” x 4.4” x 7.0”

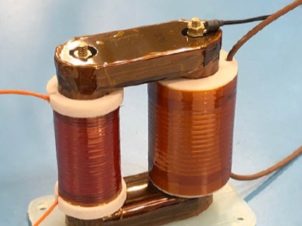

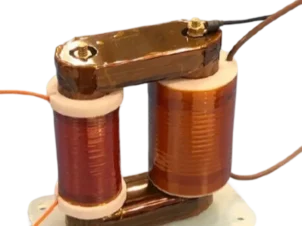

Step-Up Transformer with 3.72kV Output

  • Vin = 342V, Vout = 3.72kV
  • Power rating of 600W
  • Isolation up to 20kVAC
  • Wide band operating frequency of 10kHz-100kHz
  • L x W x H: 3.5” x 2.0” x 4.0”

15.0:540.0 Step-Up Transformer

  • Vin = 90V, Vout = 2800V
  • Power rating of 160W
  • Operating frequency range: 6kHz – 15kHz
  • Isolation up to 7kVAC
  • Vacuum impregnated with silicone potting

Request a custom quote

When standard components don’t fit your needs, our teams will engineer a solution.We design and manufacture custom transformers and inductors.
