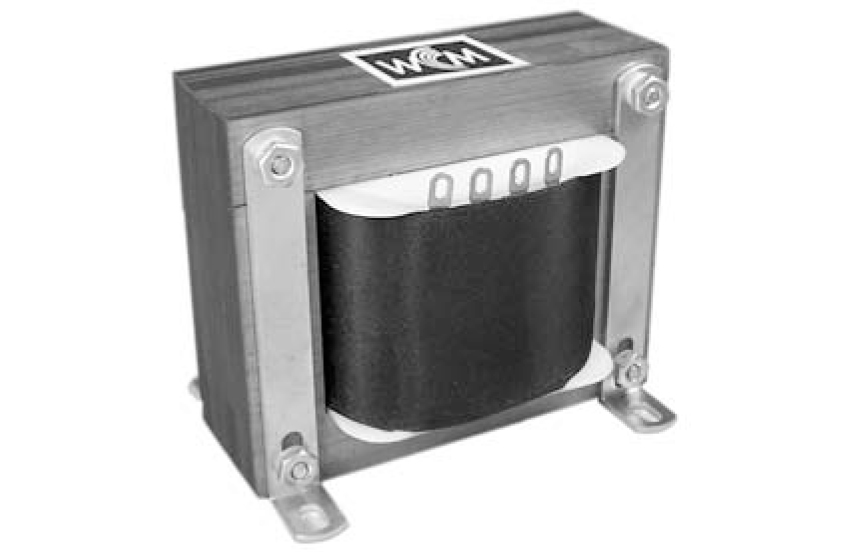

West Coast Magnetic’s 803 series provides cost effective, compact, and efficient single phase power transformers. This series features an RMS power rating up to 1.5 kVA in an easy to mount chassis configuration. Safety agency certification from UL/CSA/VDE is available on request. Quick turns on custom requirements make these ideal for applications when stock catalog transformers are not available. Features Power to 1.5 kVA, 2500 Vac hypot, and a thermal rating of 130 C.
| Part Number | Weight (kg) | VA Rating |
|---|---|---|
| WCM803-01 | 1.1 | 83 |
| WCM803-02 | 1.5 | 119 |
| WCM803-03 | 2.1 | 183 |
| WCM803-04 | 3.0 | 261 |
| WCM803-05 | 3.6 | 348 |
| WCM803-06 | 4.5 | 448 |
| WCM803-07 | 5.6 | 599 |
| WCM803-08 | 7.7 | 820 |
| WCM803-09 | 10.0 | 1170 |
| WCM803-10 | 12.0 | 1460 |
Note: VA rating based on 60 Hz operation

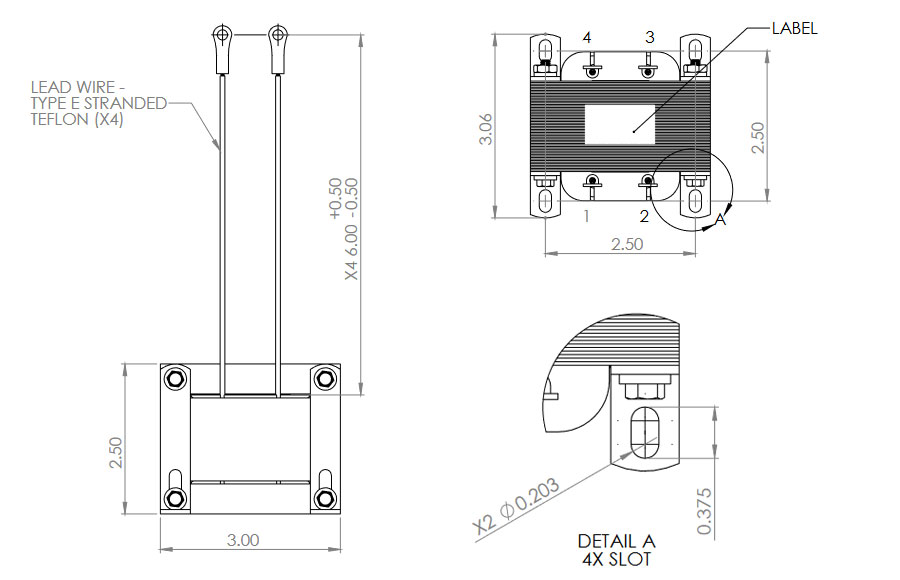

| Part Number | L | W | H | F | G | ø |
|---|---|---|---|---|---|---|
| WCM803-01 | 3.00/7.62 | 2.15/5.46 | 2.50/6.35 | 2.00/5.08 | 2.50/6.35 | .203/.521 |
| WCM803-02 | 3.00/7.62 | 2.65/6.73 | 2.50/6.35 | 2.50/6.35 | 2.50/6.35 | .203/.521 |
| WCM803-03 | 3.75/9.53 | 2.69/6.83 | 3.13/7.95 | 2.25/5.72 | 3.13/7.95 | .203/.521 |
| WCM803-04 | 3.75/9.53 | 3.31/8.41 | 3.13/7.95 | 2.88/7.32 | 3.13/7.95 | .203/.521 |
| WCM803-05 | 4.50/11.43 | 3.23/8.20 | 3.75/9.53 | 2.50/6.35 | 3.75/9.53 | .203/.521 |
| WCM803-06 | 4.50/11.43 | 3.73/4.47 | 3.75/9.53 | 3.00/7.62 | 3.75/9.53 | .203/.521 |
| WCM803-07 | 5.25/13.34 | 3.75/9.53 | 4.38/11.13 | 2.88/7.32 | 4.38/11.13 | .281/.714 |
| WCM803-08 | 5.25/13.34 | 4.50/11.43 | 4.38/11.13 | 3.63/9.22 | 4.38/11.13 | .281/.714 |
| WCM803-09 | 6.38/16.21 | 4.54/11.53 | 5.31/13.49 | 3.25/8.26 | 5.31/13.49 | .281/.714 |
| WCM803-10 | 6.75/17.15 | 4.81/12.22 | 5.63/14.30 | 3.38/8.58 | 6.13/15.57 | .281/.714 |
Dimensions: Inches/cm
Note: All materials of construction minimum Class B 130 degrees C rated.
