Switch Mode

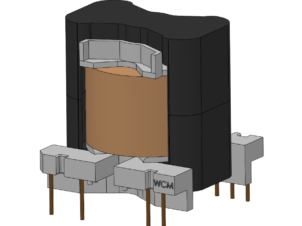

WCM420-10, 20, 30, 40 Medium Power SMPS Switch Mode Transformers

This new series was designed for applications where board space is at a minimum. Featuring a finite element optimized core geometry to equalize flux distribution throughout the core cross section, the WCM420-10, -20, -30 and -40 core and bobbin sets feature outstanding power density at power levels up to 5 kW. This series is also available with two core material options, one for traditional SMPS frequencies up to 500 kHz and a new low permeability MnZn material with very low loss at frequencies over 500 kHz. As usual with WCM geometries, standoff between core and bobbin has creepage and clearance values which will meet the most stringent medical device standards. This series puts out 500 watts to 5,000 watts of power.
GET A QUOTE
VIEW DETAILS
SEE OUR DESIGN KITS >

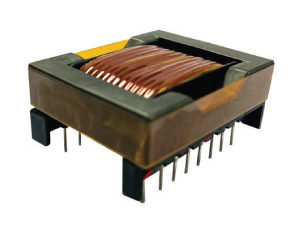

WCM410-10, 20, 30, 40 Medium Power SMPS Switch Mode Transformers

The new WCM410 series in the size ranges WCM410-10, 20, 30, 40 are intended for medium power applications and raise the bar for medium power switch mode transformers. This series is designed to achieve 50% more power density than other geometries currently available, without sacrificing isolation. Your exact specifications are used to create a WCM410 custom design. This series puts out 30 watts to 600 watts of power.
GET A QUOTE
VIEW DETAILS
SEE OUR DESIGN KITS >

WCM410-50, 60, 70, 88 High Power SMPS Switch Mode Transformers

The new WCM410 series, WCM410-50, 60, 70, 88, is intended for high power applications. This series is designed to achieve 50% more power density than other geometries currently available, without sacrificing isolation. Your exact specifications are used to create a WCM410 custom design. This series puts out 500 watts to 5,000 watts of power.

GET A QUOTE
VIEW DETAILS
SEE OUR DESIGN KITS >

WCM410-60MG Switch Mode Transformer

WCM410-60MG is designed for applications requiring a high level of isolation and is particularly suited to medical devices. Using litz wire to minimize losses at SMPS frequency, this package will support power levels up to 2 kW and has a moderate temperature rise at RMS power levels up to 1 kW. The geometry is suitable for pushpull, full bridge, half bridge and forward converter applications. Flybacks can also be supported with an optional gapped core. The primary windings can be connected in a parallel or series configuration to accommodate different topologies and input voltages. This semi custom product requires the specification of the (Max.) secondary winding, allowing it to support a wide range of output voltages as well as multiple secondary windings.
GET A QUOTE
VIEW DETAILS
20 W SMD small full bridge transformer

20 W Switch Mode Transformer

This small full bridge transformer puts out 25 watts of power in a package only 10 mm in height. The frequency of operation is 67 kHz, and leakage inductance is about 1% of the magnetizing inductance. It is copper shielded for very low EMI, and it packaged as a surface mount device.

GET A QUOTE
VIEW DETAILS
25 W PC Mount custom switch mode transformer

PC Mount Switch Mode Transformer

Yes it is possible to get high power density and isolation in a package in less than 2 cm2 of board space. This push pull step up transformer puts out 25 watts of power at 250 kHz. Let us know your input and out voltage requirements and we will make it work for you. Designed for an office equipment application, it passes UL, CSA and VDE requirements.

GET A QUOTE
VIEW DETAILS

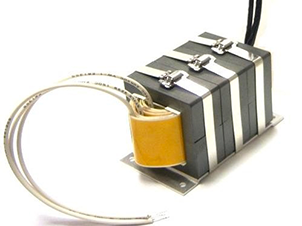

Chassis Mount Switch Mode Transformer

4 kW of 50 kHz switching power? No problem. This chassis mount transformer really delivers: 500 volts in, 2600 volts out, 7000 volts of isolation, and 98% efficiency. WCM has designed SMPS transformers at much higher power levels, so contact us with your custom requirements.

GET A QUOTE
VIEW DETAILS
