WCM511 Series Common Mode Chokes

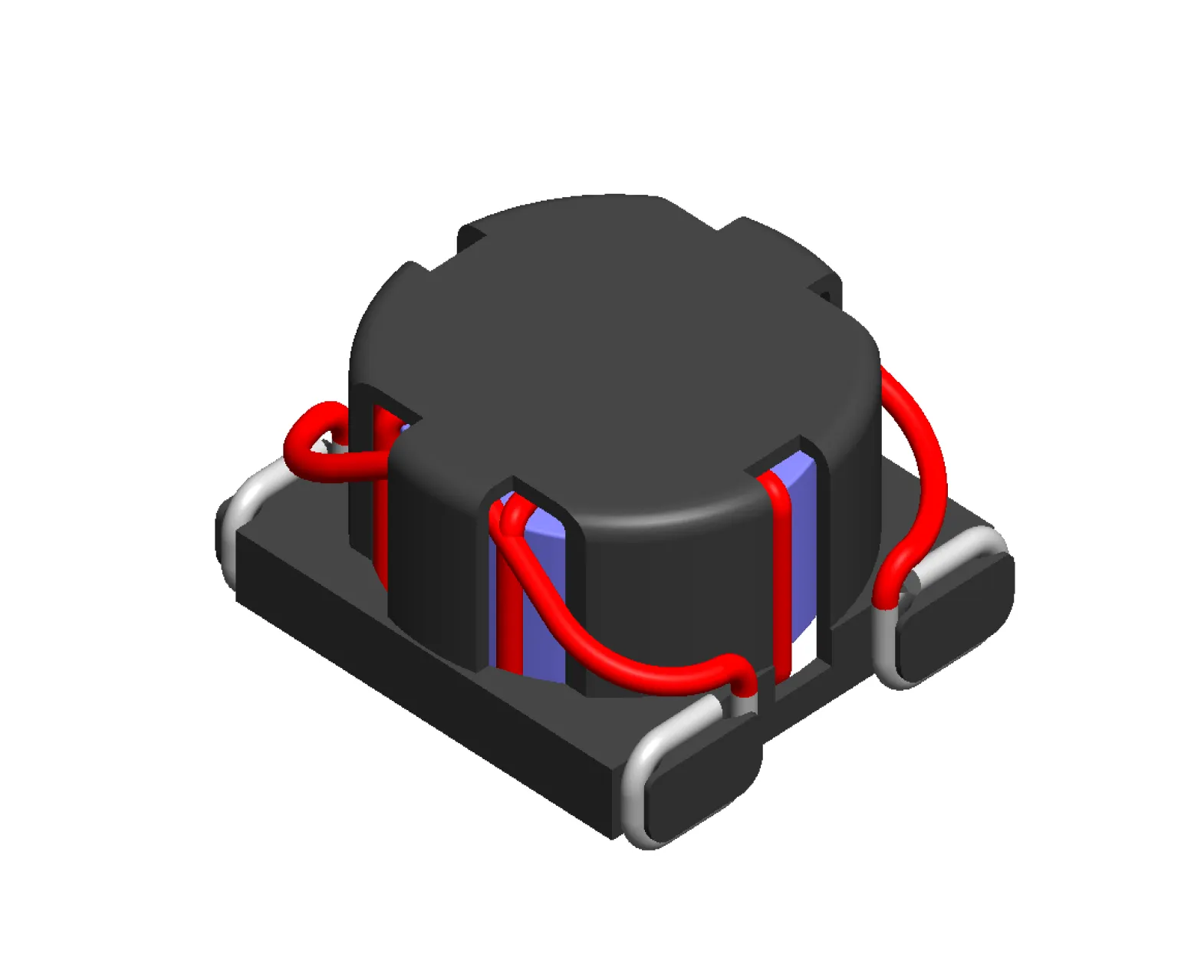

WCM’s new 511 series common mode choke was released for noise sensitive applications requiring a very high level of noise rejection. With peak impedance values for 10 kOhms 90 kOhms, these chokes will ensure that your power supply has exceptionally low noise interference. The 511 series was designed in a surface mount package to ensure ease of installation. Using nanocrystalline magnetic cores, the WCM511 series common mode chokes have stable properties over a wide temperature range.

GET A CUSTOM QUOTE
Download Product Sheet
Product Code L (min @10kHz) mH L (min @100kHz) mH Leakage L (µH) DCR (mΩ) Hipot (VAC) Max Current 40°C Rise (A) Max Current 60°C Rise (A) Max Current 80°C Rise (A)
WCM511-10 3.5 1.2 3.5 2.9 1500 18.0 22.0 26.0
WCM511-20 6.2 2.2 6.7 6.2 1500 12.0 14.0 16.0
WCM511-30 11.1 3.8 11.1 12.8 1500 8.0 9.5 10.5
WCM511-40 21.0 7.3 18.3 27.6 1500 5.2 6.5 7.3
WCM511-50 34.0 11.8 32.1 53.4 1500 3.6 4.3 5.0
WCM511-60 56.2 19.4 53.0 107.5 1500 2.5 3.0 3.4
WCM511-70 87.9 30.4 82.6 206.8 1500 1.8 2.1 2.3
WCM511-80 131.3 45.4 138.7 398.4 1500 1.2 1.4 1.6
Product Code L (min @10kHz) mH L (min @100kHz) mH Leakage L (µH) DCR (mΩ) Hipot (VAC) Max Current 40°C Rise (A) Max Current 60°C Rise (A) Max Current 80°C Rise (A)
WCM511-10 3.5 1.2 3.5 2.9 1500 18.0 22.0 26.0
WCM511-20 6.2 2.2 6.7 6.2 1500 12.0 14.0 16.0
WCM511-30 11.1 3.8 11.1 12.8 1500 8.0 9.5 10.5
WCM511-40 21.0 7.3 18.3 27.6 1500 5.2 6.5 7.3
WCM511-50 34.0 11.8 32.1 53.4 1500 3.6 4.3 5.0
WCM511-60 56.2 19.4 53.0 107.5 1500 2.5 3.0 3.4
WCM511-70 87.9 30.4 82.6 206.8 1500 1.8 2.1 2.3
WCM511-80 131.3 45.4 138.7 398.4 1500 1.2 1.4 1.6

Product Description

WCM’s new 511 series common mode choke was released for noise sensitive applications requiring a very high level of noise rejection. With peak impedance values for 10 kOhms 90 kOhms, these chokes will ensure that your power supply has exceptionally low noise interference. The 511 series was designed in a surface mount package to ensure ease of installation. Using nanocrystalline magnetic cores, the WCM511 series common mode chokes have stable properties over a wide temperature range.
