302 power inductors

10 Amp SMD Choke (302 Series)

West Coast Magnetics’ 302 series is designed to be used as a power inductor in switchmode power supply applications. These power inductors combine high current handling capability in a low profile SMD package. This inductor has lower EMI than drum core style inductors. Many part numbers can be used as a coupled inductor to accomodate multiple outputs.

Size CodeInductance,(µH±15%)SchematicDCR (mΩ) each windingDCR (mΩ) parallelI max (amps) each winding a.I max (amps) parallel a.I max (amps) L drop limited b.
302-11.30C4.402.207.8015.5018.90
302-21.80A8.602.203.9015.5015.80
302-32.50A12.503.103.3013.1013.50
302-42.50C4.402.207.8015.508.50
302-53.20A18.304.602.7010.7011.80
302-63.60A8.602.203.9015.507.10
302-74.90A12.503.103.3013.106.10
302-85.00D9.009.007.707.709.50
302-96.40A18.304.602.7010.705.30
302-107.20C17.308.703.907.807.90
302-119.80C25.3012.703.306.506.80
302-1210.00D9.009.007.707.704.30
302-1312.80B36.6012.202.206.605.90
302-1414.40C17.308.703.907.803.50
302-1516.20B51.9017.301.805.505.30
302-1619.60C25.3012.703.306.503.00
302-1720.00A73.0018.301.405.404.70
302-1824.20E25.1025.104.604.604.30
302-1925.60B36.6012.202.206.602.70
302-2031.30E36.0036.003.803.803.80
302-2132.40B51.9017.301.805.502.40
302-2240.00A73.0018.301.405.402.10
302-2342.10E52.4052.403.203.203.30
302-2445.00D109.00109.002.202.203.20
302-2548.40E25.1025.104.604.601.90
302-2654.50D120.00120.002.102.102.90
302-2762.50E36.0036.003.803.801.70
302-2865.00E131.00131.002.002.002.60
302-2980.00E73.0073.001.901.902.40
302-3084.10E52.4052.403.203.201.50
302-3190.00D109.00109.002.202.201.40
302-32109.00D120.00120.002.102.101.30
302-33115.00D110.00110.002.202.202.00
302-34130.00E131.00131.002.002.001.20
302-35157.00D161.00161.001.801.801.70
302-36160.00E146.00146.001.901.901.10
302-37230.00D110.00110.002.302.300.90
302-38304.00E285.00285.001.401.401.20
302-39314.00D161.00161.001.801.800.76
302-40608.00E285.00285.001.401.400.54
302-41675.00D530.00530.001.001.000.82
302-421350.00D530.00530.001.001.000.37
302-431445.00D1230.001230.000.670.670.56
302-442375.00D2010.001210.000.510.510.43
302-452890.00D1230.001230.000.670.670.25
302-463225.00D2960.002960.000.420.420.37
302-473920.00D4030.004030.000.360.360.34
302-484750.00D2010.002010.000.510.510.19
302-496450.00D2960.002960.000.420.420.17
302-507840.00D4030.004030.000.360.360.15

302_schematicssm






Note: All materials of construction minimum Class B 130 degrees C rated. Dimensions: Inches/mm

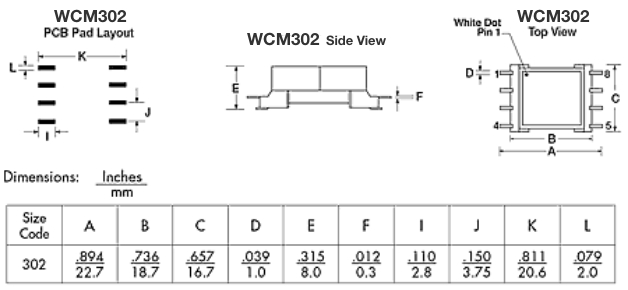

302_viewssm






Note: All materials of construction minimum Class B 130 degrees C rated.

Dimensions: Inches/mm
