West coast Magnetics’ 508 series common mode chokes are designedspecifcally for very low profle applications. With an rMs current ratingof up to 30 amps, noise impedance in excess of 1000 ohms, and a height less than 1.4 cm, this common mode choke packs a lot of performance in a small package.
| Product Code | Minimum Inductance (µH) | Rated RMS Current(amps) 40° C Temp Rise | Rated RMS Current(amps) 60° C Temp Rise | Rated RMS Current(amps) 80°C Temp Rise | Nominal Leakage Inductance (µH) | Nominal DCR (mOhm at 25°C) | Interwinding Hypot (Vac) | Clearance (mm) |
|---|---|---|---|---|---|---|---|---|
| 508-01 | 5082.900 | 3.0 | 3.5 | 4.3 | 80.35 | 118.8 | 1500 | 3 |
| 508-02 | 3604.500 | 4.2 | 4.8 | 5.8 | 58.29 | 63.9 | 1500 | 3 |
| 508-03 | 2566.100 | 5.8 | 6.6 | 8.0 | 41.94 | 34.6 | 1500 | 3 |
| 508-04 | 1552.300 | 7.9 | 9.4 | 11.0 | 26.0 | 817.3 | 1500 | 3 |
| 508-05 | 901.100 | 11.5 | 13.1 | 16.0 | 15.7 | 28.5 | 1500 | 3 |
| 508-06 | 594.900 | 14.5 | 17.2 | 21.0 | 9.87 | 4.5 | 1500 | 3 |
| 508-07 | 352.000 | 19.0 | 24.0 | 26.8 | 5.81 | 2.3 | 1500 | 3 |
| 508-08 | 172.500 | 23.0 | 25.3 | 30.1 | 3.42 | 1.1 | 1500 | 3 |

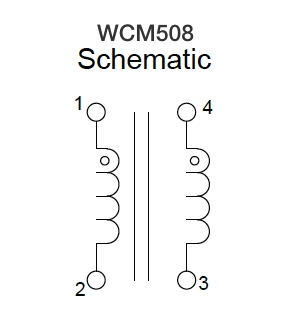

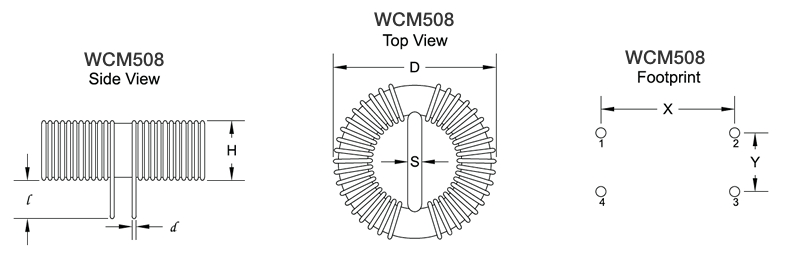

| Product Code | D | H | S | d | l | X | Y |
| 508-1 | 1.620/4.115 | 0.360/0.914 | 0.125/0.318 | 0.020/0.051 | 0.25/0.6 | 1.400/3.556 | 0.437/1.109 |
| 508-2 | 1.640/4.166 | 0.380/1.965 | 0.125/0.318 | 0.025/0.064 | 0.25/0.6 | 1.400/3.556 | 0.437/1.109 |
| 508-3 | 1.650/4.191 | 0.30/.991 | 0.125/0.318 | 0.032/0.081 | 0.25/0.6 | 1.400/3.556 | 0.437/1.109 |
| 508-4 | 1.640/4.166 | 0.410/1.041 | 0.125/0.318 | 0.040/0.102 | 0.25/0.6 | 1.400/3.556 | 0.437/1.109 |
| 508-5 | 1.690/4.293 | 0.440/1.118 | 0.125/0.318 | 0.051/0.130 | 0.25/0.6 | 1.400/3.556 | 0.437/1.109 |
| 508-6 | 1.710/4.343 | 0.460/1.168 | 0.125/0.318 | 0.064/0.163 | 0.25/0.6 | 1.400/3.556 | 0.437/1.109 |
| 508-7 | 1.760/4.470 | 0.530/1.346 | 0.125/0.318 | 0.081/0.206 | 0.25/0.6 | 1.400/3.556 | 0.437/1.109 |
| 508-8 | 1.810/4.597 | 0.50/1.448 | 0.125/0.318 | 0.102/0.259 | 0.25/0.6 | 1.400/3.556 | 0.437/1.109 |
West coast Magnetics’ 508 series common mode chokes are designedspecifcally for very low profle applications. With an rMs current ratingof up to 30 amps, noise impedance in excess of 1000 ohms, and a height less than 1.4 cm, this common mode choke packs a lot of performance in a small package.
